| Material : |
- Free Cutting Brass IS 319 Type (I) or
- Free Cutting Brass as per BS 249 Type (I) or
- High Grade Free Cutting Brass
- CDA 360 Brass
- CZ-360 High Grade Brass
- Any Special Brass Material Composition as per customer requirements.
|
| Length/Size of Brass Anchors : |
- Begins from M2 or equivalent threads and up to any size as per Custom Designs or requirements.
|
| Threading Available for Brass Anchors : |
- B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form
- N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Thread
- Metric, NPT, BSP, PG or specified
- ISO Metric (MM Threads)
- BA Threads
- DIN Standard
- GB Threads
|

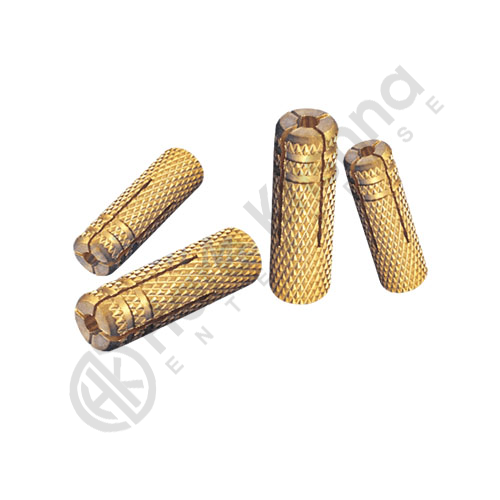

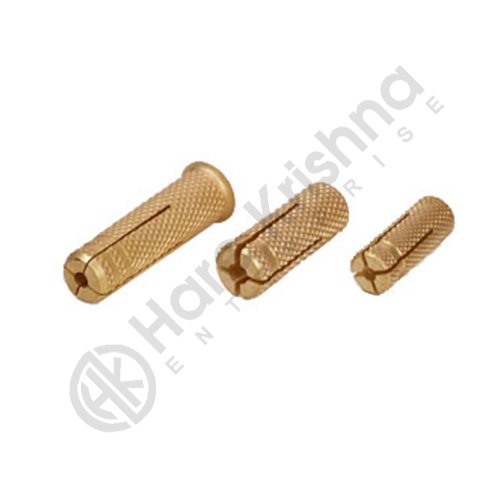

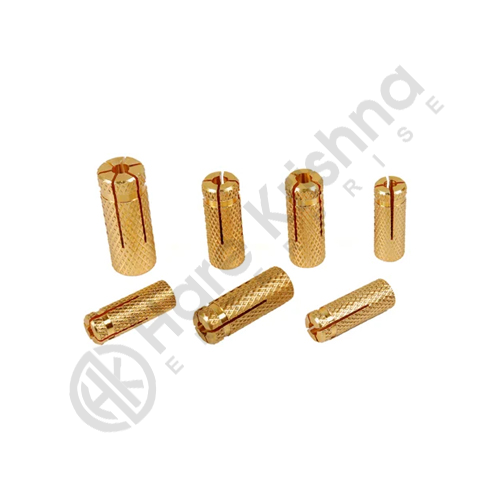

| Features of Brass Anchors: |
- Larger Bearing area and acts as a socket.
- Fixture can be removed and replaced.
- Suitable for solid brick, light concrete hollow core concrete panels and timber.
- Brass Anchor is also used for light weight railing fixings.
- Internal tapering to enable the Anchor to expand and to self-lock the suspension rod into position.
- The body is knurled for improved performance.
|
| Application of Brass Anchors: |
- Brass Anchors are multifaceted Components and are able to work with any surfaces like brick, concrete, metallic or timber based surfaces.
|
| Plating and Coating Available for Brass Anchors |
- Natural, Nickel Plated, Tin Plated, Natural Brass, Electro-Tin, Chrome or any coating as per customer requirements.
|
